Name: Mingstar RCGF40-40-10 Most Popular Industrial Full Automatic Small Juice Production Machine Small Juice Filling Machine
Brand: Suzhou Mingstar Company Limited
Availability: InStock

Home Products Juice Filling Machine

Mingstar RCGF40-40-10 Most Popular Industrial Full Automatic Small Juice Production Machine Small Juice Filling Machine

Product Details:

Contact Now

Detailed Product Description

Product Description

This is a inline piston filling machine for cream and liquid.it adopts PLC and touch screen control panel for control material.It is charaterized by accurate measuring,adcanced structure,stable operating,low noise,large adjusting range,fast filling speed.

Hot Juice filling Machine

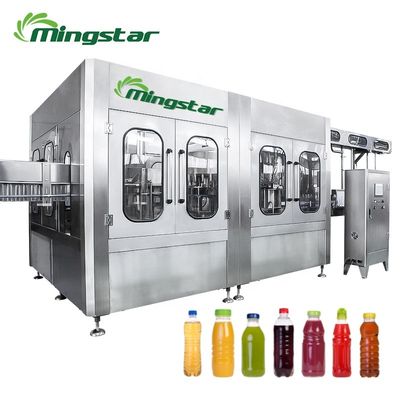

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml-2000ml.different models can .satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .

Technical Parameters

Take water as the main parameter for reference, other liquids, please contact customer service for details

All machines could be customized , we could design design and produce machines according to your request.

Model	RCGF14-12-5	RCGF16-16-6	RCGF24-24-6	RCGF32-32-8
Production capacity	4000BPH(500ml)	8000BPH(500ml)	12000BPH(500ml)	10000BPH(500ml)
Washing heads	14	16	24	32
Filling heads	12	16	24	32
Capping heads	5	6	6	8
Suitable bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle
Diameter of bottle	50-110mm	50-110mm	50-110mm	50-110mm
Height of bottle	150-310mm	150-310mm	150-310mm	150-310mm
Suitable cap	Plastic screw cap	Plastic screw cap	Plastic screw cap	Plastic screw cap
Weight	2000KG	3000KG	5000KG	7000KG
Main motor power	1.5KW	2.2KW	3KW	3KW

This Production Line is a whole Automatic water filling capping machine production line solution;The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

Please contact us to confirm the product parameter before payment.

Glass Liquor filling systems

※Easy Maintenance
The valve components can be dismantled independently, a maintenance advantage
※High Level of Hygiene
The AISI 304 and plastic parts that come into contact with the treatment liquid are made of tested food-grade materials

※User-friendly Control
Control panel with a color tour with a touch screen interface

※The filling nozzle

.The filling nozzle is equipped with a drip proof device to ensure that the filling is not drawn, and it will not drip.

he method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

Detail Images

Operation Panel

Simple operation panel,it can be customized in different kinds of language.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.

Detection Parts

The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

Washing Parts

Into bottle way is air conveyor direct connection with bottle dial.All -304/316 stainless steel rinse heads,water spray style inject design, more save water consumption and more clean. -304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.-304/316 stainless steel washing pump make the machine more durable.

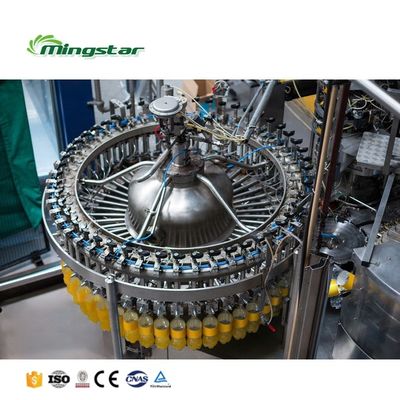

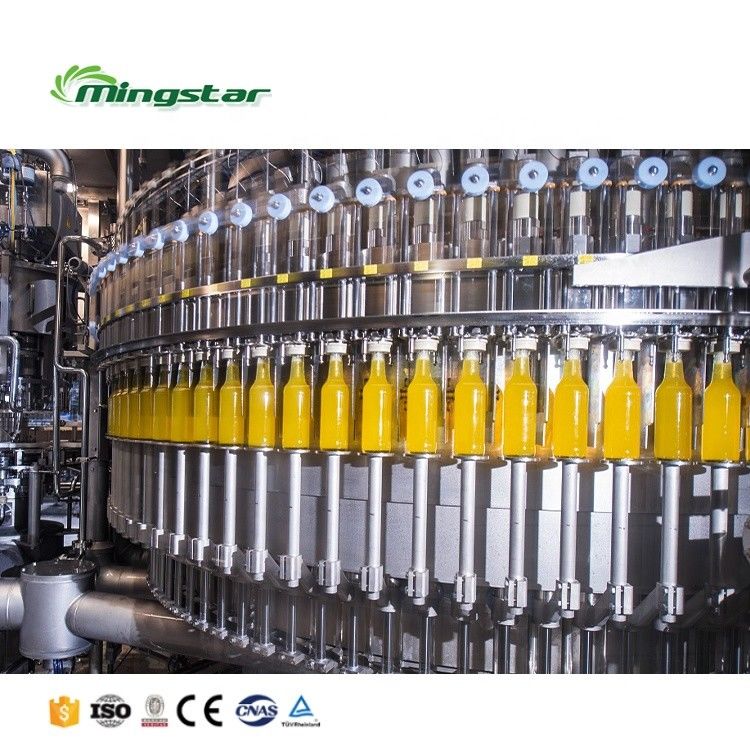

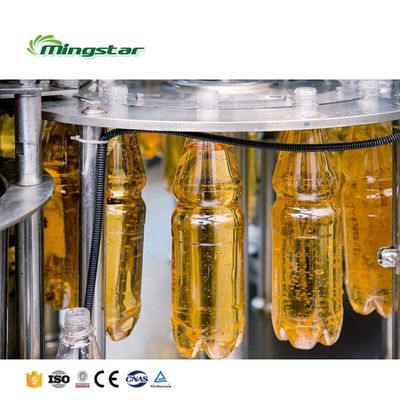

Filling Parts

- 304/316 Stainless steel high precision filling nozzle - Filling volume adjustable in fine rank, same liquid level after filling - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean - 304/316 stainless steel filling pump - Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Parts

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping - All 304/316 stainless steel construction - No bottle no capping - Automatic stop when lack of bottle - Capping effect is stable and reliable, Defective rate ≤0.2%

Auxiliary Parts

The auxiliary(optional)equipment have boottle rinsing water reflux tank,bottle- feeding air conveyor,and bottle-outputting chain. Besides,we will configure manual bottle feeding platform (or bottlle unsrambler),automatic cap elecator and so on.

Consultation Service

Filling Machine Choosing

Filling Machine Customization

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing

Packing & Logistic

SGS Certification

Technical Support

After Sales Service

Installation & Worker Training

Technical Support Online

Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme

Client Guarantee Programme

Customer Development Programme

Label Design.

We can provide the label design

according to the bottle size, the

icon style you want.

Bottle Design.

Our designers can design bottle

styles according to your

requirement.

Machine Layout.

We will design andconfirm the

machine layout according to

your factory sketch.

Company Profile

We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.

With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.

Packing & Delivery

Packing Details : Plastic film and wooden case packaging, double protection Delivery Details : Delivery within 30 days by sea Two years warranty after receiving the equipment .

FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment. ※Each component before assembly needs strictly control by inspecting personnel. ※Each assembly is in charged by a master who has working experience for more than 6 years. ※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory. ※We offer whole filling line testing production service in our factory for hours by request.

Q. ARE YOU A TRADING COMPANY OR MANUFACTURER?

A: We are manufacturer,we have our professional manufacturing teams and technicians.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?

※Two years warranty after receiving the equipment . Free spare parts and technical supports. ※New client guarantee programme offers longer warranty and customized after service. ※Local after service network is under construction. ※Annual engineer visiting for diagnosis and updating service.

Q: ANY OTHER QUESTIONS?

※Send inquiry to Mingstar. ※Chat now through Alibaba APP. ※Call us or reserve a call.

Contact Details

Suzhou Mingstar Company Limited
