Name: BCGF 8-6-1 500BPH 3 in 1 Automatic 330ml Small Scale Glass Bottle Water Filling Machine Liquid Beer Filling Machine
Brand: Suzhou Mingstar Company Limited
Availability: InStock

Home Products Beer Filling Machine

BCGF 8-6-1 500BPH 3 in 1 Automatic 330ml Small Scale Glass Bottle Water Filling Machine Liquid Beer Filling Machine

Product Details:

Contact Now

Detailed Product Description

Product Description

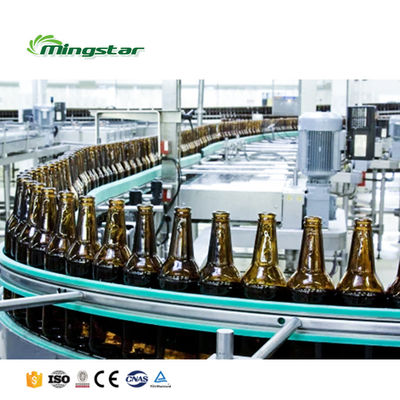

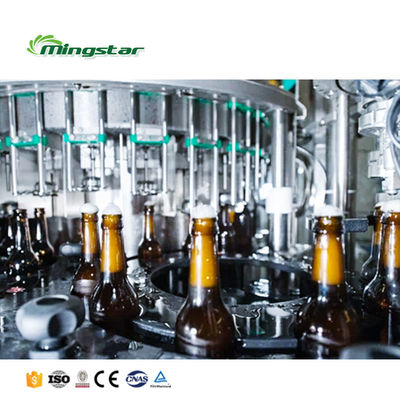

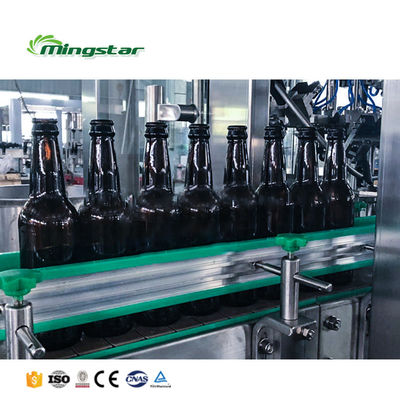

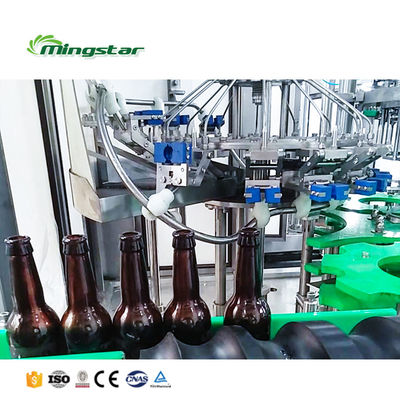

This BCGF series bottling machine, incorporates rinsing, filling and capping. into one and is a kind of full-automatic equipment.It is innovated and designed in the requirement of beer, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. BCGF series glass beer filling machine is used to filling all kinds of beer, purified beer into glass bolttes. Machine replacement for PET bottles and cans.Different models can satisfy various requirement of output from 500B/H to 10000B/H.

The whole process of beer filling production line is automatic.

Main Technical Parameters

Take water as the main parameter for reference, other liquids, please contact customer service for details

All machines could be customized , we could design design and produce machines according to your request.

Model	BCGF8-6-1	BCGF14-12-4	BCGF18-18-6	BCGF24-24-8
Production capacity	500BPH(330ml)	1000BPH(500ml)	2000BPH(500ml)	3000BPH(500ml)
Washing heads	8	14	18	24
Filling heads	6	12	18	24
Capping heads	1	4	6	6
Suitable bottle	Grass bottle				PET bottle, Plastic bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle
Diameter of bottle	52-84mm				50-110mm	50-110mm	50-110mm
Height of bottle	200-350mm				150-310mm	150-310mm	150-310mm
Suitable cap	Crown cap Aluminum screw cap, 28-40 (can be customized, according to customer needs)				Plastic screw cap	Plastic screw cap	Plastic screw cap
Weight	1300KG	2500KG	3000KG	4000KG
Main motor power	1.5KW	1.5KW	3KW	3KW
Dimension(mm)	152011252350	190017002500	250018002300	271021002500

This Production Line is a whole Automatic water filling capping machine production line solution;

The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

Please contact us to confirm the product parameter before payment.

Detailed Images

Consultation Service

Filling Machine Choosing

Filling Machine Customization

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing

Packing & Logistic

SGS Certification

Technical Support

After Sales Service

Installation & Worker Training

Technical Support Online

Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme

Client Guarantee Programme

Customer Development Programme

Label Design.

We can provide the label design

according to the bottle size, the

icon style you want.

Bottle Design.

Our designers can design bottle

styles according to your

requirement.

Machine Layout.

We will design andconfirm the

machine layout according to

your factory sketch.

Partner Customers

We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.

With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.

Packing& Delivery

Packing Details : Plastic film and wooden case packaging, double protection Delivery Details : Delivery within 30 days by sea Two years warranty after receiving the equipment .

FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing
equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line
for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?

※Two years warranty after receiving the equipment . Free spare parts and technical supports.
※New client guarantee programme offers longer warranty and customized after service.
※Local after service network is under construction.
※Annual engineer visiting for diagnosis and updating service.

Q: ANY OTHER QUESTIONS?

※Send inquiry to Mingstar.
※Chat now through Alibaba APP.
※Call us or reserve a call.
