Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 0
Product Description

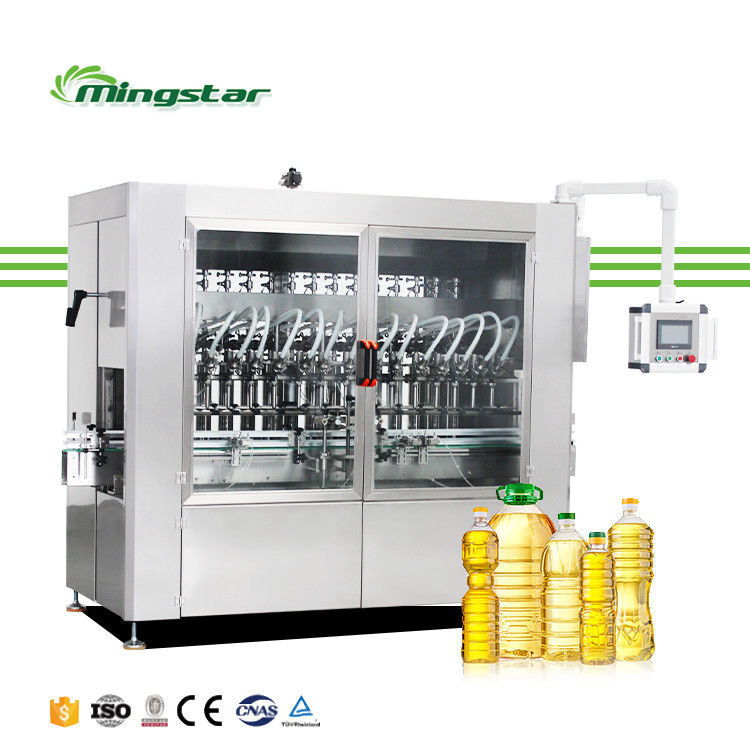

This is an inline piston filling machine for cream and liquid.it adopts PLC and touch screen control panel for control material. It is characterized by accurate measuring,advanced structure,stable operating, low noise, large adjusting range,fast filling speed. It is also suitable for the filling of easy volatilization, easy bubbly liquid strong corrosive liquid for rubber, plastic,and high viscosity, liquid,semi-liquid. Operators adjust and meter figures in the touch screen control panel, also can adjust the metering of each filling head.The external surface of this machine is made of excellent stainless steel.
Good appearance,applied to GMP standard.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 2
Main Technical Parameters
Take water as the main parameter for reference, other liquids, please contact customer service for details.
All machines could be customized , we could design design and produce machines according to your request.
Type
Head
Suitable
bottles
Speed
Precise
Machine Size
Power
Power Supply
Air
MSTY-20
20





Customized
300ml<5000BPH





 <0.1%
2800*1300*2350
1.5KW




      AC
220/380V
50/60HZ




0.6- 0.8Mpa
MSTY-16
16
300ml<4500BPH
2800*1300*2350
1.5KW
MSTY-12
12
300ml<4000BPH
2800*1300*2350
1.5KW
MSTY-8
8
300ml<3000BPH
2000*1300*2350
1.0KW
MSTY-6
6
300ml<2000BPH
2000*1300*2350
1.0KW

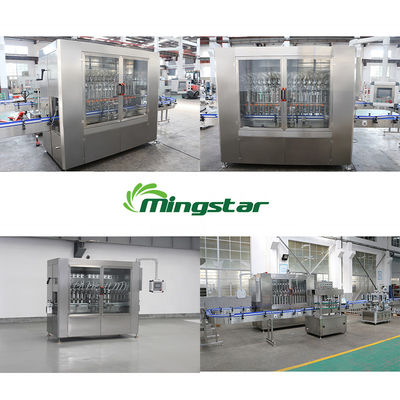

This Production Line is a whole Automatic essential oil filling capping machine production line solution;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be
Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated
Filling And Packaging Production Line Plan For The Customer.
Apply to
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 4

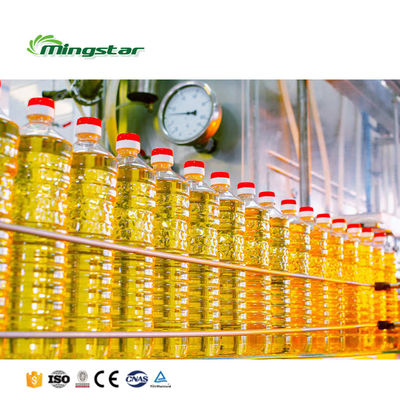

Edible Oil

Suitable : Edible Oil
Bottle Material : PET / PE / Glass / Metal
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 6

Detergents

Suitable : detergent,shampoo, dishwasher,liquid soap etc
Bottle Material : PE Bottle
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 8

Corrosive Liquid

Suitable : bleach,clorox, toilet cleaner .
Bottle Material : PP Bottle
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 10

Sauce Products.

Suitable : bleach, clorox, toilet cleaner .
Bottle Material : PET / PE / Glass / Metal
Related Products
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 12
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 14
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 16
1. FILLING MACHINE 2. CAPPING MACHINE 3. LABELING MACHINE
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 18
4. AUTOMATIC BOTTLE LIQUID FILLING CAPPING LABELING LINE

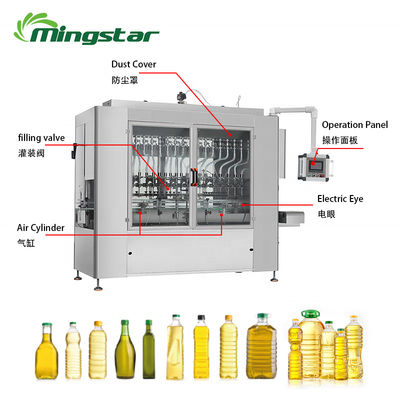

Detailed Images
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 20



Operation Panel
Simple operation panel,it can be customized in different kinds of language.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.

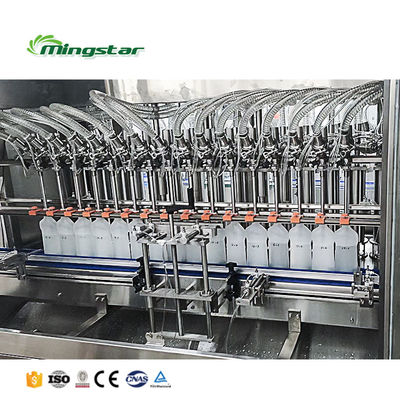

Diving Nozzle
Equipped with pneumatic diving nozzle,it has larger power to fill liquid.The diving nozzle can prevent the liquid from splashing as little as possible,improve filling accuracy.
It is also good for filling foamy liquid.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 22
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 24



Filling control
The magnetic switch is used to control filling range,each filling nozzle can be controlled separately.There are two small screws
near air cylinder,these are used to control the input and output of air,so that can control the filling speed.





Filling Valve
No blind angle three-way valve, long service life. One key to clean residual material on piston and cylinder.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 26
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 28




Distance Screw
Quantitative filling, adjustment for one key.Fast interface easy to be dismantled easy to wash, no drip,diving filling.The internal adjustment of the machine is simple.Short adjustment time for replacing bottle shape.




Piston Cylinder
Adopt servo control, piston filling form, PLC and man-machine control interface. With four groups of dose adjustment memory data,
it is more convenient to change the dose.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 30
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 32

Choose different types and lengths of filling nozzles according to different filling materials.Select applicable valves according to their filling materials
What We Offer?
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 34

Consultation Service

Filling Machine Choosing
Filling Machine Customization
Filling Line Updating
Turn-Key Solution
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 36

Manufacture & Test Service

Filling Machine Stress Testing
Packing & Logistic
SGS Certification
Technical Support
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 38

After Sales Service

Installation & Worker Training
Technical Support Online
Annual Diagnosis & Updating
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 40

Optional Value-added Service

Agent Recruitment Programme
Client Guarantee Programme
Customer Development Programme
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 42

Label Design

We can provide the label design
according to the bottle size, the
icon style you want.

Bottle Design

Our designers can design bottle styles according to your requirement.

Machine Layout

We will design andconfirm the machine layout according to your factory sketch.
Partner Customers
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 44
With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 46
Packing& Delivery
Oil Bottling Line Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine 48
Packing Details : Plastic film and wooden case packaging, double protection Delivery Details : Delivery within 30 days by sea Two years warranty after receiving the equipment .
