Name: Automatic Cooking Oil Making Filling and Capping Machine Engine Oil Filling Machine
Brand: Suzhou Mingstar Company Limited
Availability: InStock

Home Products Oil filling machine

Automatic Cooking Oil Making Filling and Capping Machine Engine Oil Filling Machine

Product Details:

Contact Now

Detailed Product Description

Product Description

This is an inline piston filling machine for cream and liquid.it adopts PLC and touch screen control panel for control material. It is characterized by accurate measuring,advanced structure,stable operating, low noise, large adjusting range,fast filling speed. It is also suitable for the filling of easy volatilization, easy bubbly liquid strong corrosive liquid for rubber, plastic,and high viscosity, liquid,semi-liquid. Operators adjust and meter figures in the touch screen control panel, also can adjust the metering of each filling head.The external surface of this machine is made of excellent stainless steel.

Good appearance,applied to GMP standard.

Main Technical Parameters

Take water as the main parameter for reference, other liquids, please contact customer service for details.

All machines could be customized , we could design design and produce machines according to your request.

Type

Head

Suitable

bottles

Speed

Precise

Machine Size

Power

Power Supply

Air

MSTY-20

Customized

300ml<5000BPH

<0.1%

2800*1300*2350

1.5KW

220/380V

50/60HZ

0.6- 0.8Mpa

MSTY-16

300ml<4500BPH

2800*1300*2350

1.5KW

MSTY-12

300ml<4000BPH

2800*1300*2350

1.5KW

MSTY-8

300ml<3000BPH

2000*1300*2350

1.0KW

MSTY-6

300ml<2000BPH

2000*1300*2350

1.0KW

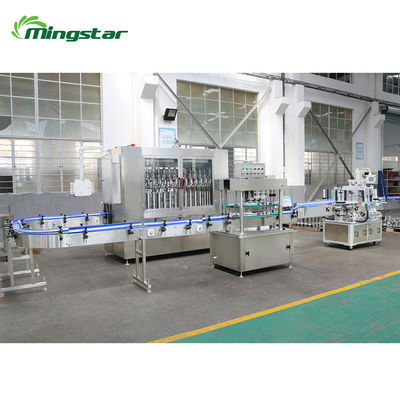

This Production Line is a whole Automatic essential oil filling capping machine production line solution;

The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be

Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated

Filling And Packaging Production Line Plan For The Customer.

Apply to

Edible Oil

Suitable : Edible Oil
Bottle Material : PET / PE / Glass / Metal

Detergents

Suitable : detergent,shampoo, dishwasher,liquid soap etc
Bottle Material : PE Bottle

Corrosive Liquid

Suitable : bleach,clorox, toilet cleaner .
Bottle Material : PP Bottle

Sauce Products.

Suitable : bleach, clorox, toilet cleaner .
Bottle Material : PET / PE / Glass / Metal

Related Products

1. FILLING MACHINE 2. CAPPING MACHINE 3. LABELING MACHINE

4. AUTOMATIC BOTTLE LIQUID FILLING CAPPING LABELING LINE

Detailed Images

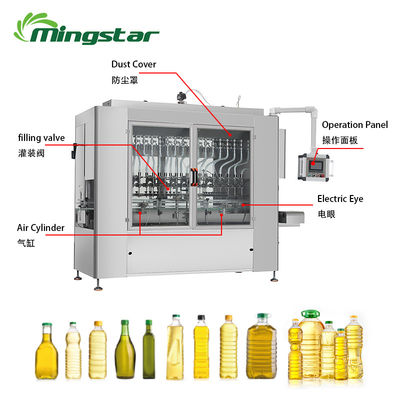

Operation Panel

Simple operation panel,it can be customized in different kinds of language.

The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.

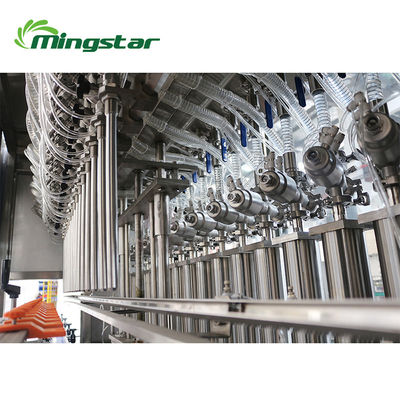

Diving Nozzle

Equipped with pneumatic diving nozzle,it has larger power to fill liquid.The diving nozzle can prevent the liquid from splashing as little as possible,improve filling accuracy.

It is also good for filling foamy liquid.

Filling control

The magnetic switch is used to control filling range,each filling nozzle can be controlled separately.There are two small screws
near air cylinder,these are used to control the input and output of air,so that can control the filling speed.

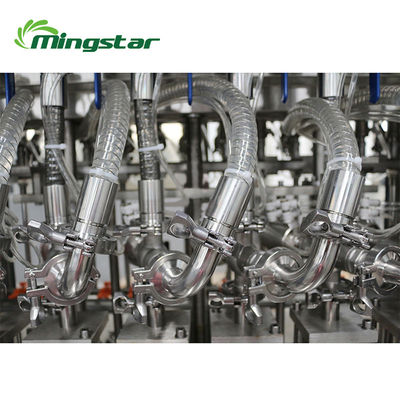

Filling Valve

No blind angle three-way valve, long service life. One key to clean residual material on piston and cylinder.

Distance Screw

Quantitative filling, adjustment for one key.Fast interface easy to be dismantled easy to wash, no drip,diving filling.The internal adjustment of the machine is simple.Short adjustment time for replacing bottle shape.

Piston Cylinder

Adopt servo control, piston filling form, PLC and man-machine control interface. With four groups of dose adjustment memory data,
it is more convenient to change the dose.

Choose different types and lengths of filling nozzles according to different filling materials.Select applicable valves according to their filling materials

What We Offer?

Consultation Service

Filling Machine Choosing

Filling Machine Customization

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing

Packing & Logistic

SGS Certification

Technical Support

After Sales Service

Installation & Worker Training

Technical Support Online

Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme

Client Guarantee Programme

Customer Development Programme

Label Design

We can provide the label design

according to the bottle size, the

icon style you want.

Bottle Design

Our designers can design bottle styles according to your requirement.

Machine Layout

We will design andconfirm the machine layout according to your factory sketch.

Partner Customers

We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.

With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.

Packing& Delivery

Packing Details : Plastic film and wooden case packaging, double protection Delivery Details : Delivery within 30 days by sea Two years warranty after receiving the equipment .

FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment. ※Each component before assembly needs strictly control by inspecting personnel. ※Each assembly is in charged by a master who has working experience for more than 6 years. ※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory. ※We offer whole filling line testing production service in our factory for hours by request.

Q. ARE YOU A TRADING COMPANY OR MANUFACTURER?

A: We are manufacturer,we have our professional manufacturing teams and technicians.

Q: ANY OTHER QUESTIONS?

※Send inquiry to Mingstar. ※Chat now through Alibaba APP. ※Call us or reserve a call.
