Name: Mingstar GCGF14-12-4 2000BPH 3 in 1 Automatic 330ml Small Scale Glass Bottle Making Machine Liquid Filling Machine
Brand: Suzhou Mingstar Company Limited
Availability: InStock

Home Products Glass Bottle Filling Machine

Mingstar GCGF14-12-4 2000BPH 3 in 1 Automatic 330ml Small Scale Glass Bottle Making Machine Liquid Filling Machine

Product Details:

Contact Now

Detailed Product Description

Product Description

Glass Bottle Servo Piston Tonic Water Filling Line

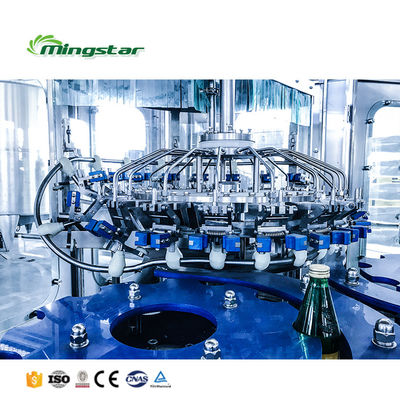

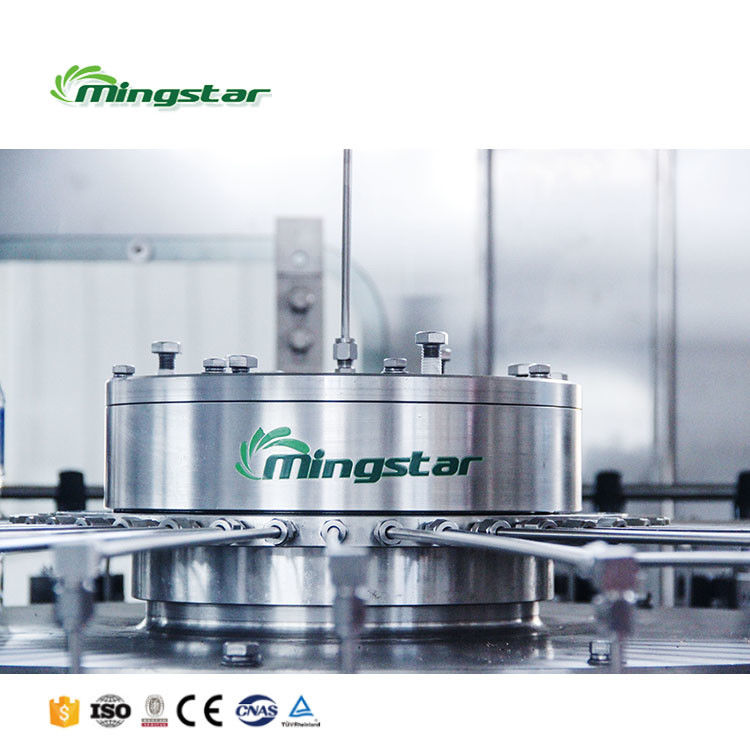

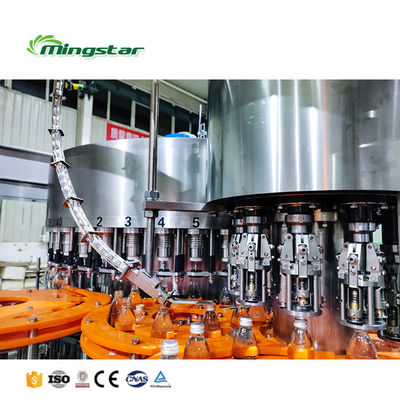

Automatic glass bottle servo piston filling line can fill high viscous product, such as functional beverage or pharmaceutic syrup, ketchup, jam, mustard, oil. The key machinery is rotary servo piston filler, it adopts bellowed advantages compared with traditional piston filler. 1: High accuracy, since the piston moving by serving motor instead of mechanical rail. 2: With inline CIP function, no need to disassemble the pistons. 3: Different size bottle, no need to do any mechanical adjustment. 4: Vacuum design, no any leakage on piston outlet neck part

Technical Parameters

Take water as the main parameter for reference, other liquids, please contact customer service for details.

All machines could be customized , we could design design and produce machines according to your request.

Model	GCGF6-3-1	GCGF14-12-5	GCGF16-16-6	GCGF18-18-6
Production capacity(500ml)	1000BPH	2000-3000BPH	4000-6000BPH	7000-8000BPH
Washing heads	6	14	16	18
Filling heads	3	12	1816	32
Capping heads	1	5	6	6
Main motor power	1.5kw	1.5kw	2.2kw	2.2kw
Dimension(mm)	280021502700	328027002500	320012002100	370012002100
Flush pressure	0.2-0.25MPa	0.2-0.25MPa	0.2-0.25MPa	0.2-0.25MPa
Air pressure	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Bottle Size	200-1500ml	200-1500ml	200-1500ml	200-1500ml
Weight	1500kg	2000kg	4500kg	4500kg

Model	GCGF24-24-6	GCGF32-32-8	GCGF40-40-10
Production capacity(500ml)	8000-12000BPH	10000-12000BPH	14000-15000BPH
Washing heads	24	32	40
Filling heads	24	32	40
Capping heads	6	8	10
Main motor power	3kw	4kw	6kw
Dimension(mm)	420012002100	470012002100	430028002200
Flush pressure	0.2-0.25MPa	0.2-0.25MPa	0.2-0.25MPa
Air pressure	0.7MPa	0.7MPa	0.7MPa
Bottle Size	200-1500ml	200-1500ml	200-1500ml
Weight	6000kg	6500kg	8000kg

Detail Images

Operation Panel

Simple operation panel,it can be customized in different kinds of language.The visual working data makes it easier to test and adjust the machine helps to save time.

Detection Parts

The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

Washing Parts

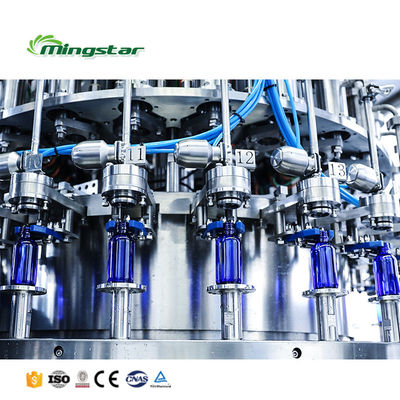

Into bottle way is air conveyor direct connection with bottle dial. -304/316 stainless steel rinse heads,water spray style inject design, more save water consumption and more clean. -304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. -304/316 stainless steel washing pump make the machine more durable.

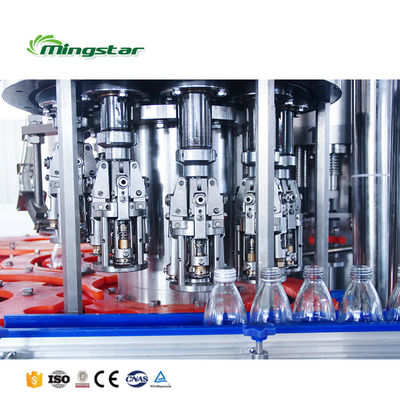

Other capping style we also can do as following:

aluminum cap, crown cap, ring pull cap, etc.

About Mingstar

About Mingstar

1 / Standardized workshop of total 2000 square meters. 2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline,and pneumatic, electrical and mechnical stability. 3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

About Mingstar

<1> Standardized workshop of total 2000 square meters. Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier &Korea Daewoo, ensure the precision of parts. <2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability. <3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts. <4>Engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space. <5>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

Certificate

International certification, National Certificate of equipment verification are done in Mingstar . Verification Certificates of equipments: ISO9001:2015; CE Certificate , SGS , National Certificate of equipment verification,etc.

Mingstar Serivce

*7/24 Online Service::Machine running video / Watch our factory online / More service contact us *Sucessful Beverage Plant::Supply a running beverage line in your country , you can see machine runing directly. *Installation / Debug / Training: 1 - We will arrange seasoned technician for equipments installation, debug and test production. 2 - Our company offers technology training to the customer in his factory. 3 - We promise that our goods are all new and not used. *After-sales Service: 1 - After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price. 2 - If you could not solve the problems, we will arrange a technician to your factory solving the problems. 3 - After quality guarantee, we offer technical support and after-sales service.

Partner Customers

Mingstar is a professional manufacturer of beverage machinery in China.

With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality. We warmly welcome customers all over the world to visit our manufacture.

Customer Reviews

Cooperative Customer Brands

With years of export experience along with excellent quality, advanced services and competitive prices,

Mingstar has won numerous customers' trust and support.

What We Offer?

Consultation Service

Filling Machine Choosing

Filling Machine Customization

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing

Packing & Logistic

SGS Certification

Technical Support

After Sales Service

Installation & Worker Training

Technical Support Online

Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme

Client Guarantee Programme

Customer Development Programme

Label Design.

We can provide the label design

according to the bottle size, the

icon style you want.

Bottle Design.

Our designers can design bottle

styles according to your

requirement.

Machine Layout.

We will design andconfirm the

machine layout according to

your factory sketch.

Packing& Delivery

Packing Details : Plastic film and wooden case packaging, double protection

Delivery Details : Delivery within 30 days by sea Twoyears warranty after receiving the equipment .

FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?

※Two years warranty after receiving the equipment . Free spare parts and technical supports.
※New client guarantee programme offers longer warranty and customized after service.
※Local after service network is under construction.
※Annual engineer visiting for diagnosis and updating service.

Q: ANY OTHER QUESTIONS?

※Send inquiry to Mingstar.
※Chat now through Alibaba APP.
※Call us or reserve a call.
