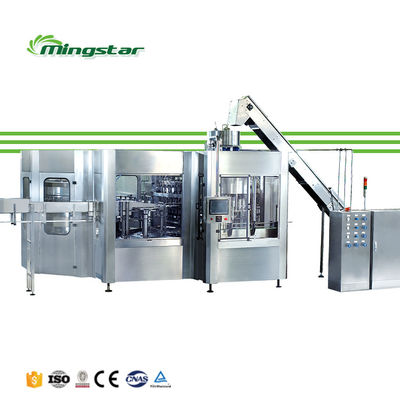

Water Bottling Carbonated Soft Drink Machine Carbonated Drink Production Filling Line

Product Details:

Contact Now

Detailed Product Description

Product Description

Counter Pressure Filling System

The DCGF series machinery is designed for the bottling of carbonated products which are quite often unstable during the filling phase.
This category includes: carbonated water, soft drinks, slightly sparkling wines, sparkling wines and beer. However, the DCGF series allows bottling also flat products (i.e. products that do not contain carbon dioxide).

Main Technical Parameters

Take water as the main parameter for reference, other liquids, please contact customer service for details.

All machines could be customized , we could design design and produce machines according to your request.

Model	DCGF 24-24-6	DCGF 32-32-8	DCGF 40-40-10	DCGF 50-50-12
Production capacity	6000BPH(500ml)	9000BPH(500ml)	12000BPH(500ml)	15000BPH(500ml)
Washing heads	24	32	40	50
Filling heads	24	32	40	50
Capping heads	6	8	10	12
Suitable bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle	PET bottle, Plastic bottle
Diameter of bottle	50-110mm	50-110mm	50-110mm	50-110mm
Height of bottle	150-310mm	150-310mm	150-310mm	150-310mm
Suitable cap	Plastic screw cap	Plastic screw cap	Plastic screw cap	Plastic screw cap
Weight	5000KG	8000KG	9000KG	10000KG
Main motor power	2.2KW	3KW	7.5KW	7.5KW

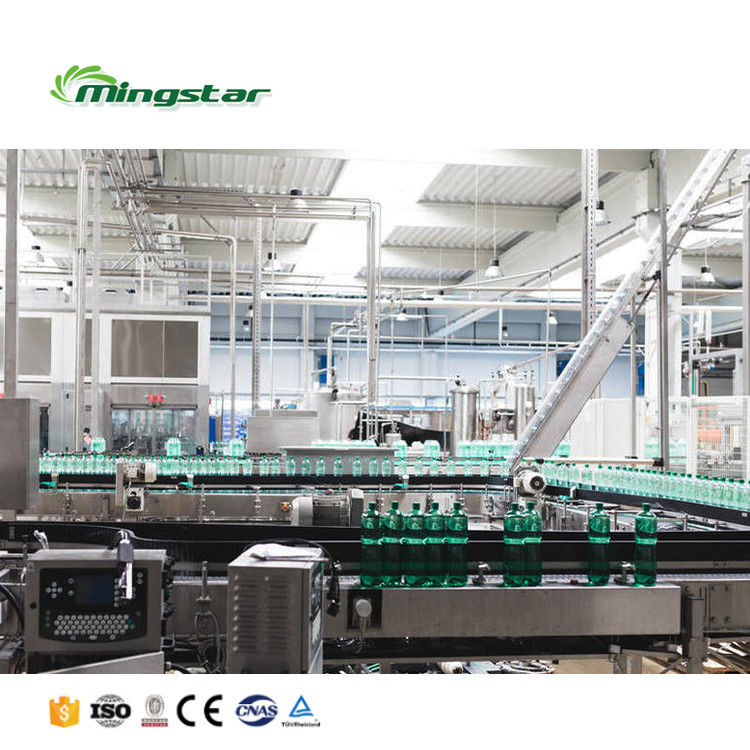

This Production Line is a whole Automatic water filling capping machine production line solution;The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

Please contact us to confirm the product parameter before payment.

Detailed Images

Operation Panel

Simple operation panel,it can be customized in different kinds of language.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which
improves the product quality.

Detection Parts

The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

Washing Parts

Into bottle way is air conveyor direct connection with bottle dial.All
-304/316 stainless steel rinse heads,water spray style inject design, more save water consumption and more clean.
-304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
-304/316 stainless steel washing pump make the machine more durable.

Filling Parts

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Parts

- Place and capping system, electromagnetic capping heads, with burden discharge
function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Auxiliary Parts

The auxiliary(optional)equipment have boottle rinsing water reflux tank,bottle-feeding air conveyor,and bottle-outputting chain.
Besides,we will configure manual bottle feeding platform (or bottlle unsrambler),automatic cap elecator and so on.

Consultation Service

Filling Machine Choosing

Filling Machine Customization

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing
Packing & Logistic
SGS Certification
Technical Support

After Sales Service

Installation & Worker Training
Technical Support Online
Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme
Client Guarantee Programme
Customer Development Programme

Label Design.

We can provide the label design
according to the bottle size, the
icon style you want.

Bottle Design.

Our designers can design bottle
styles according to your
requirement.

Machine Layout.

We will design andconfirm the
machine layout according to
your factory sketch.

Partner Customers

We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid
introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.

With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.
