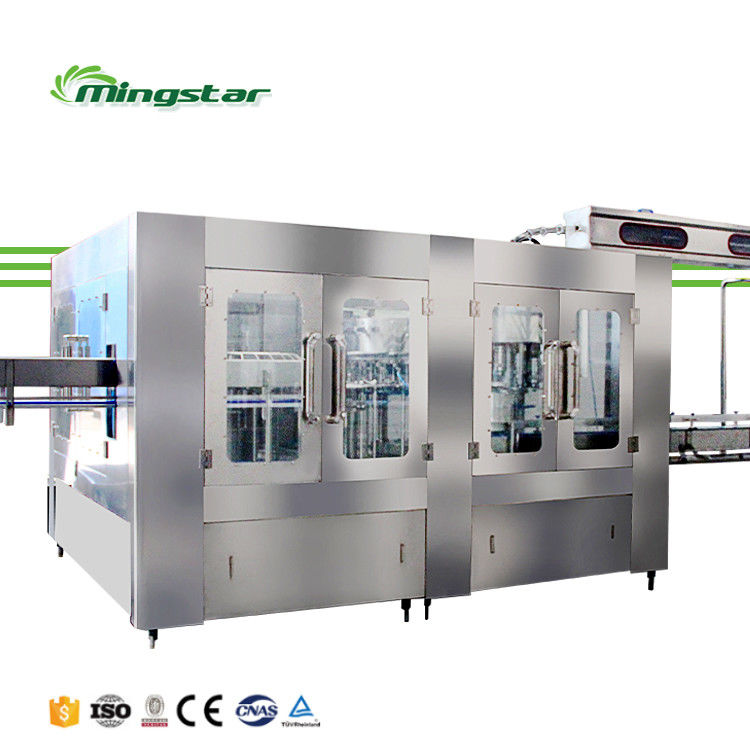

Three in One Soda Soft Water Making Machine for Carbonated Drink Production Line

1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.
3. Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.
4. Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.

Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180 along the conveying rail.There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sky original and double-opened bottle clip.Bottle clip lock the bottleneck, the material of bottle clip is SUS304,which is hygienic and durable.

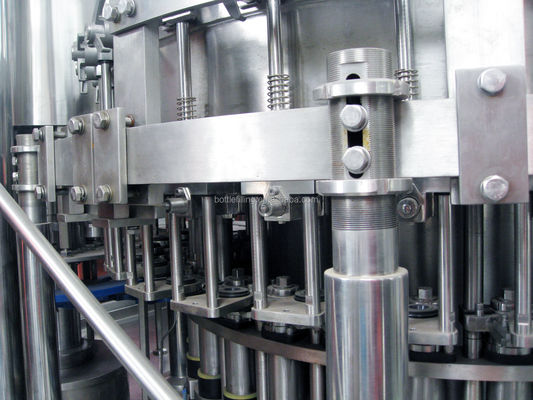

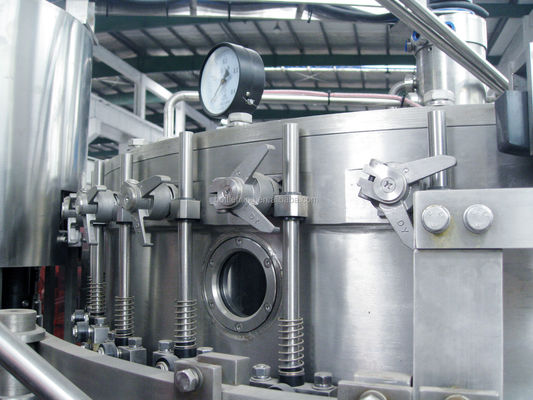

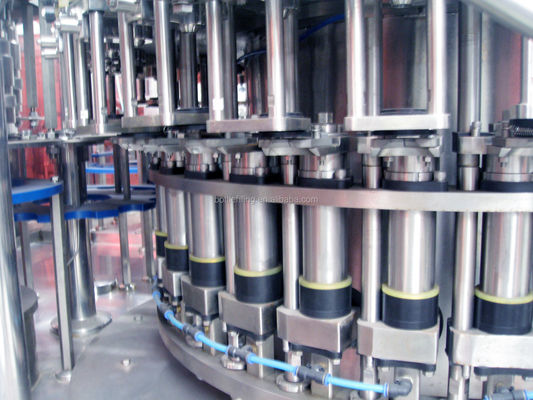

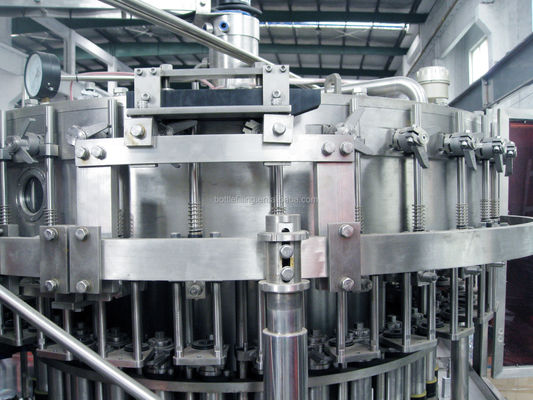

Automatic Monobloc Mineral Water Bottling Plant/Production Line design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.Filling valve elevator, after filling valve contact the bottle neck, it starts to fill.

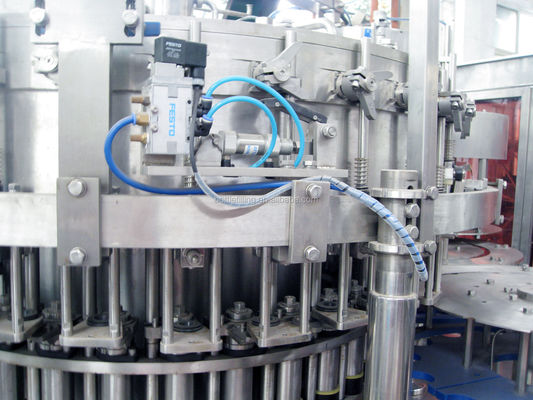

Screw capping ,machine is most precision part in the 3-1 machine.
Mingstar import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable. When it has no cap, or the cap is bad, the machine will stop automatically.

Our professional team welcomes any customer to consult and provide the information they need at any time.

Invite customers to visit the factory, and we will arrange personnel to pick up customers at the airport.

 We will arrange the engineers to go to the customer site for installation, commissioning and worker training.

Packing Details  : Plastic film and wooden case packaging, double protection

Delivery Details : Delivery within 30 days by sea

A: We are factory.

A: 30% T/T Advanced payment, 70% before shipment.30 days delivery

A: We offer a two-year warranty and we will also give you a lot of accessories when you purchase equipment.

A: Of course.We will make it working before arriving at your factory;
