5 Gallon Water Bottle 20 Liters Bottle Automatic Barrel Drinking 5 Gallon Water Filling Machine

Product Details:

Contact Now

Detailed Product Description

What Can This Machine Do For You?

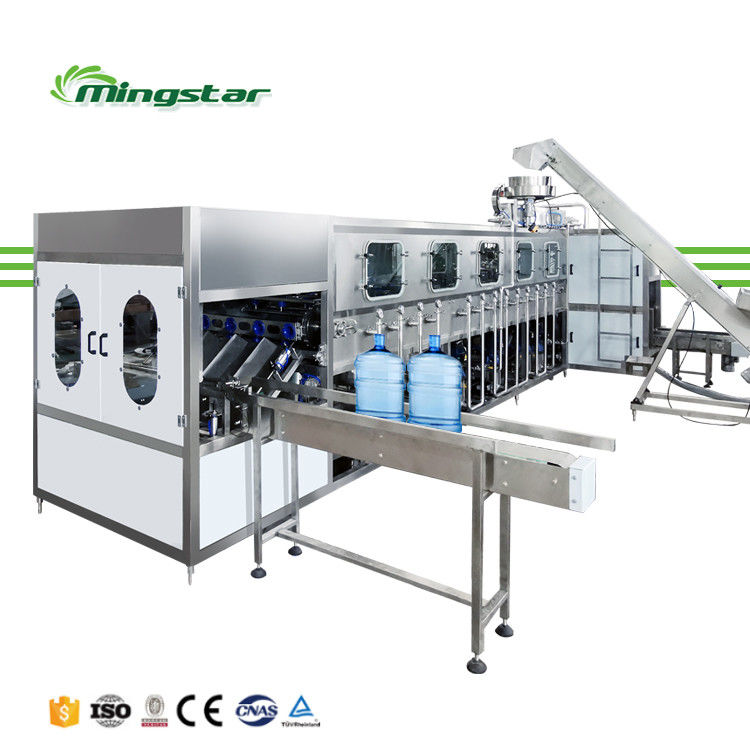

Automatic 5 Gallon Washing Filling and Capping Machine

Rinsing,filling and capping monobloc model "TXG-600" for natural water in 5 gallon bottles with easy operation and occupation.

Model	TXG-1200
Bottle Dimension	Height 485-495mm Diameter 265-273mm
Producing Capacity	1200 bottles/Hour
Power	380V, 50HZ, Total Power 6 KW.
Water Consumption	Rinsing water: 1000LPH Filling water: 6000 LPH
External Dimension	659026602500mm
3Weight	8000kg

Detail images

Material of the machine

The frame, sealing plate and water tank of the machine are all made of 304 stainless steel. Compared with AISI 201, AISI 304 is more corrosion-resistant and more hygienic, and it is a food-grade material.

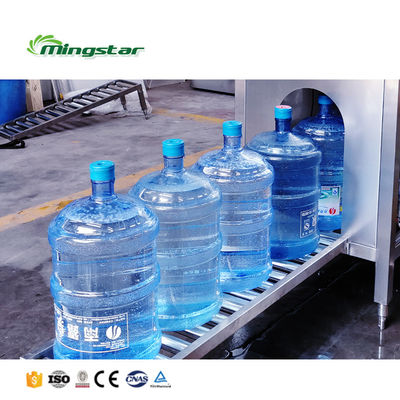

Conveying Parts

The Rising conveyor is driven by a motor, which can accurately convey the bucket, which is easy to control, and the bucket falls more smoothly after the washing is completed.

Bearing

The bearing is upgraded with AISI304 stainless steel, which is more sanitary, corrosion resistant and has a longer life.This kind of bearing is easy to install, may work in the harsh environment.

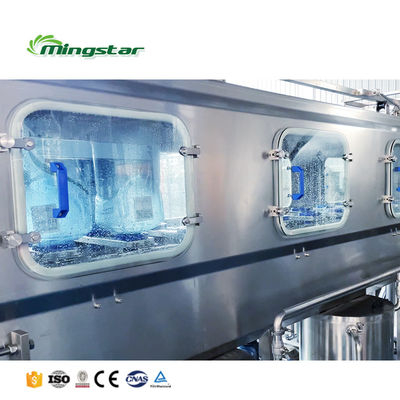

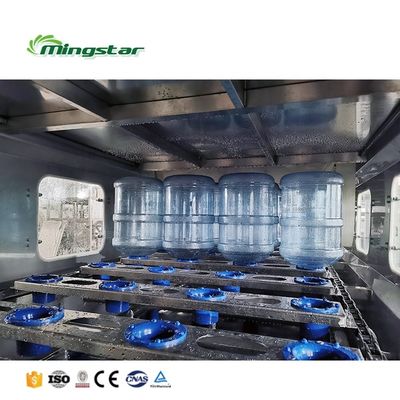

Washing Parts

High pressure AISI304 washing nozzle, no washing dead corner, to make sure better washing effect and improve product quality.

Inner tanks

Inner tanks upgraded with dosing ports. It is convenient to mix disinfectant or hot alkali into the water tank. Easy inspection and bigger volume tank for a long usage time.

Filling Parts

The filling part is upgraded to use non-contact filling, fast filling, precise control of the liquid level, without wasting a drop of water.

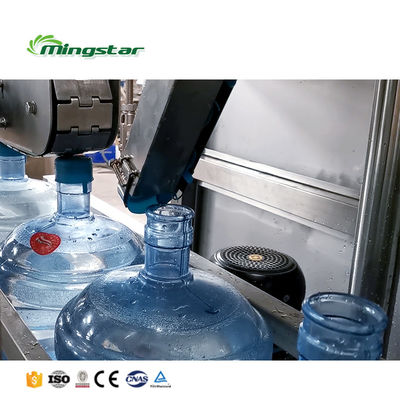

Capping Parts

Automatic put cap onto bottle mouth, and use pneumatic cylinder to press cap tight. It’s energy-saving and low noise.

Centrifugal cap sorting device

Motor drives cap sorting device rotate slowly without damage to the cap. Big hopper for enough caps storage.

Electrical Control System

It is made up of PLC, relay, intermediate relay, sensor and other components. Each action time of the whole line can be setting dependently on the man-machine interface.

Consultation Service

Filling Machine Customization

Filling Machine Choosing

Filling Line Updating

Turn-Key Solution

Manufacture & Test Service

Filling Machine Stress Testing Packing & Logistic SGS Certification Technical Support

After Sales Service

Installation & Worker Training Technical Support Online Annual Diagnosis & Updating

Optional Value-added Service

Agent Recruitment Programme Client Guarantee Programme Customer Development Programme

Partner Customers

Mark

Appraise:❤❤❤❤❤

Easy access to AISI table for operations

King

Appraise:❤❤❤❤❤

Low energy consumption

Eco-friendly

Rar

Appraise:❤❤❤❤❤

Low risk of contamination

High level of hygiene

Packing& Delivery

FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy, we are equipped with professional processing equipment.

※Each component before assembly needs strictly control by inspecting personnel. ※Each assembly is in charged by a master who has working experience for more than 6 years. ※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory. ※We offer whole filling line testing production service in our factory for hours by request.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?

※Two years warranty after receiving the equipment . Free spare parts and technical supports. ※New client guarantee programme offers longer warranty and customized after service. ※Local after service network is under construction. ※Annual engineer visiting for diagnosis and updating service.

Q: Any other questions?

※Send inquiry to Mingstar. ※Chat now through Alibaba APP. ※Call us or reserve a call.
